Product Description

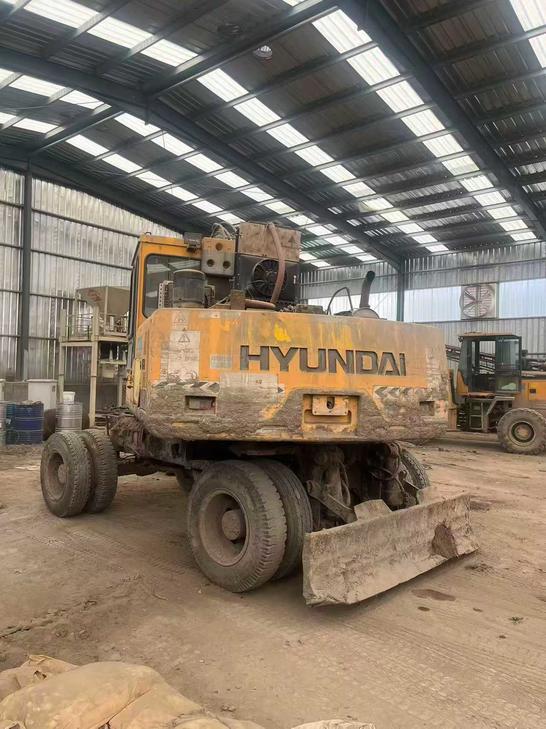

Engineered with dual 55 l/min variable plunger pumps and a robust 220 MPa working hydraulic circuit, this 2016 Hyundai R 60VS delivers precise control across digging, traveling, and rotation functions. At its core sits a Yanmar 4TNV98 water-cooled engine producing 54.3 kW at 2400 rpm, engineered for reliability in demanding jobsite conditions. The 5,850 kg operating weight balances stability with maneuverability in confined spaces.
Performance specifications demonstrate thoughtful design:
- Maximum digging reach of 6,150 mm with 3,820 mm depth capability
- 0.21 m³ backhoe bucket paired with 3,000 mm boom and 1,600 mm stick
- 70% grading ability and 4.0 km/h high-range travel speed
- Compact transport dimensions: 5,900 mm length × 1,920 mm width
- 1,650 mm rear swing radius for tight-access operations
Hyundai's joint-venture manufacturing standards ensure consistent build quality throughout hydraulic seals, structural welds, and drivetrain components. Currently located in Qingdao, Shandong, this machine represents proven 6-ton class excavator technology ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1018524 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 |
| Rated power (kw/rpm) | 54.3 / 2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 (3.86 ") x 110 (4.33 "). |
| Maximum torque (N.m) | 20.6 / 1800 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.0 / 2.2 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 220 |
| Pilot Oil Circuit (MPa) | 30 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 50 x 660 (3.1 "x 26.0") |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90×55×850 (3.5 "×33.5") |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110×65×715 (4.3 "×28.1") |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1830 |
| Total track length (mm) | 2530 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1990 |
| Maximum height at minimum turning radius (mm) | 2350 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
